HDMI - HDBaseT Matrix Switches
Our matrix switches are high quality with attractive pricing. Please find the different HDMI - HDBaseT matrix switches below and find your perfect solution. Besides the HDMI matrix switches we have several other types of matrix switches. Please check them out here

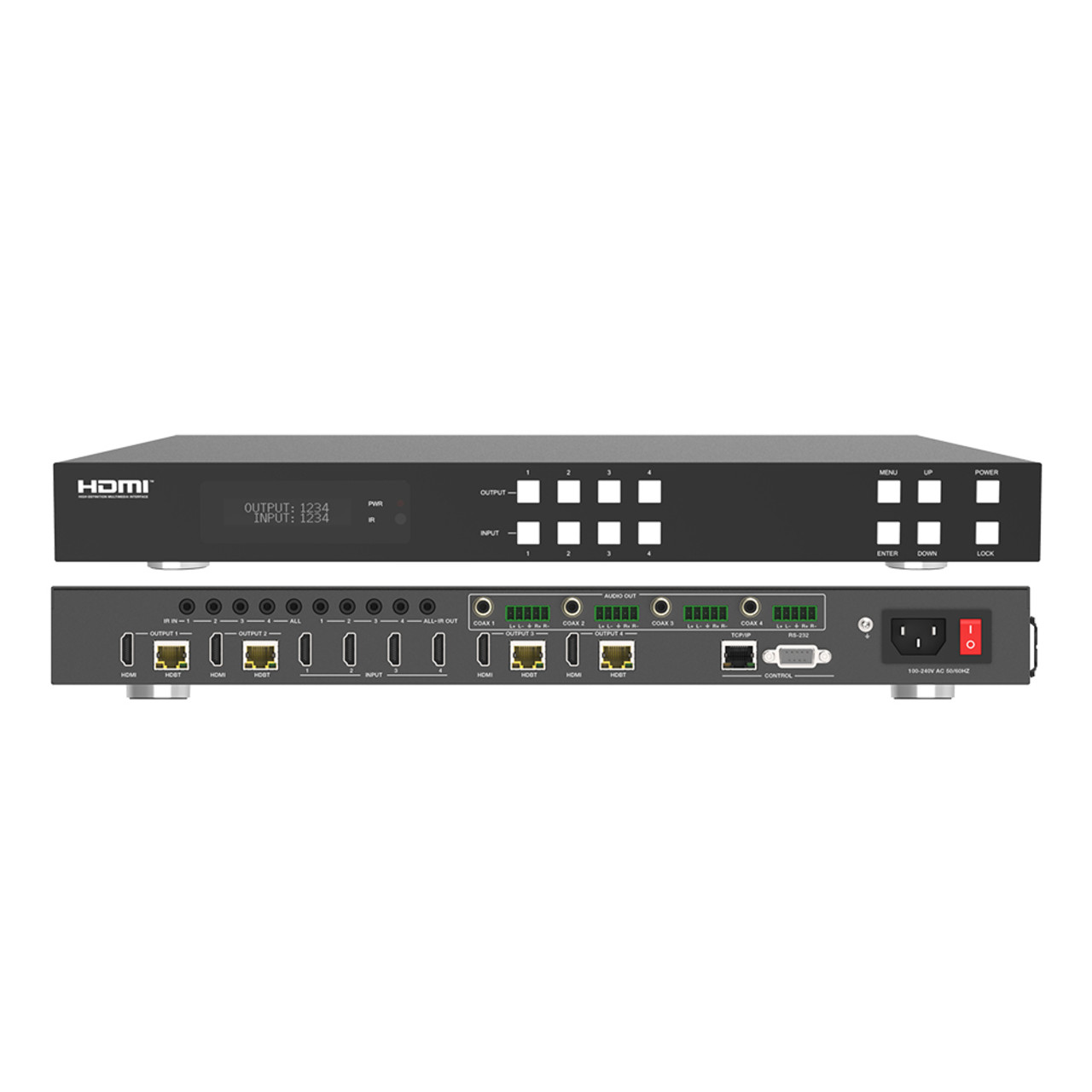

HBM-44-150-KIT
HDBaseT Matrix UHD including 4 Receivers
The matrix is a four-input by four-output HDBaseT and HDMI matrix with HDCP 2.2 and up to 4K/UHD@60Hz video support. It transmits 4K video to distances up to 150 meter over a single CATx Ethernet cable.
HDBaseT outputs support the Power over Cable (PoC) feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable. The matrix not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
HBM-44-ARC-70-KIT
The matrix is a four-input by four-output HDBaseT and HDMI matrixwith HDCP 2.2 and up to 4K/UHD@60Hz video support and ARC. It transmits 4K video to distances up to 131 feet (40 meters) and 1080p video to distances up to 229 feet (70 meters) over a single CATx Ethernet cable.
HDBaseT outputs support the Power over Cable (PoC) feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable. The matrix not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.

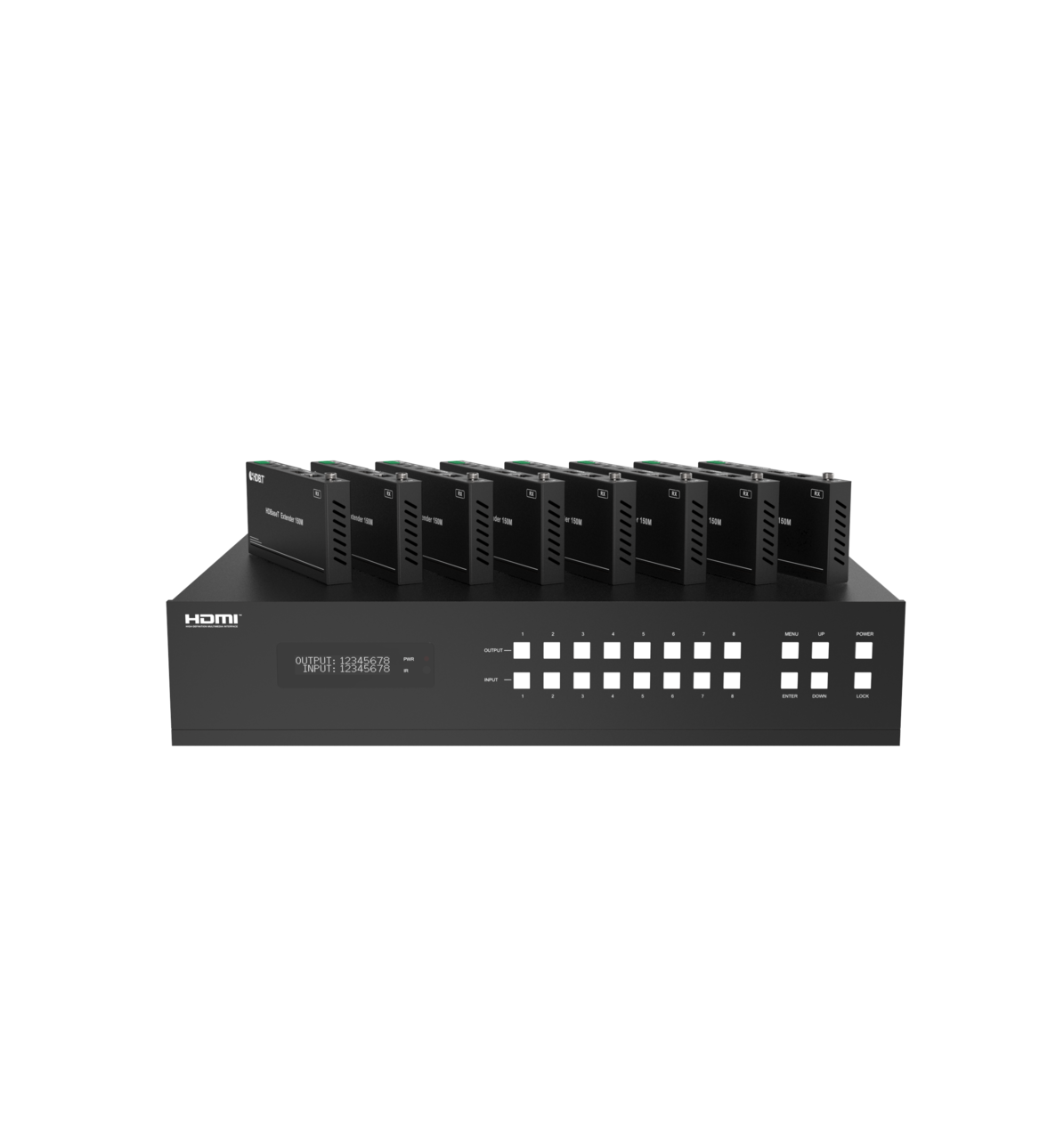

HBM-88-150-KIT
HDBaseT Matrix UHD including 4 Receivers
The matrix is a eight-input by eight-output HDBaseT and HDMI ma-trix with HDCP 2.2 and up to 4K/UHD@60Hz video support. It transmits 4K video to distances up to 150 meter over a single CATx Ethernet cable.
HDBaseT outputs support the Power over Cable (PoC) feature, allowing the receivers to draw their power from the matrix over the HDBaseT cable. The matrix not only supports bi-directional IR, RS232 extension but also has IR, RS232, and TCP/IP control options.
